Box Tiles Emerald

Zintra’s Box Tiles go beyond just covering walls—they add texture, depth, and striking definition to any space, whilst providing superior acoustic benefits. With a range of standard sizes and depths, as well as large format you can tailor your design to suit your space perfectly.

Whether you’re envisioning a seamless wall-to-wall installation or a striking acoustic feature, Box Tiles offer unparalleled flexibility. Perfect for commercial, hospitality, and institutional settings, they effortlessly blend style with functionality, enhancing every inch of your space.

Emerald

Discover exceptional design with Zintra's Emerald Box Tiles. Available in square and rectangle shapes, these deeper format tiles offer versatility and convenience without compromising on quality or aesthetics. With superior acoustics and minimalist elegance, they promise easy installation and greater coverage, perfect for offices, auditoriums, and beyond.

Zintra Emerald Box Tiles are available in square (2 sizes) and rectangle (7 sizes). A dynamic solution that seamlessly combines aesthetic elegance with superior acoustics. Crafted as larger format tiles with deeper (4”) dimensions (100mm), Emerald Box Tiles offer versatility and convenience without compromising on quality or aesthetics.

With a focus on superior acoustics and minimalist aesthetics, they promise easy installation and greater coverage, ideal for a variety of settings, from offices to auditoriums.

Available in 5 other great designs, in various sizes and depths (refer to dimensions for size specific information)

Diamond |Hex | Pitched | Square | Rectangle

So, if you’re aiming to amplify the ambiance of a restaurant, hotel, or office space, Zintra’s Box Tiles are a brilliant choice, delivering both captivating style and practical functionality.

Available in the full Zintra Colour range including digital print

Not suitable as a free-standing product.

Emerald 8x96

• 3 tiles /set, 1.5m² (16 SF)

• 203mm (8") w x 2438mm (96") h x 102mm (4") d

  Emerald 8x48

• 5 tiles /set 1.25m² (13.35 SF)

• 203mm (8") w x 1219mm (48") h x 102mm (4") d

  Emerald 32x96

• 1 tile / set 1.98m² (21.34 SF)

• 813mm (32") w x 2438mm (96") h x 102mm (4") d

  Emerald 32x48

• 2 tiles / set 1.98m² (21.34 SF)

• 813mm (32") w x 1219mm (48") h x 102mm (4") d

  Emerald 32x32

• 2 tiles / set 1.32m² (14.22 SF)

• 813mm (32") w x 813mm (32") h x 102mm (4") d

  Emerald 16x96

• 2 tiles /set 1.98m² (21.34 SF)

• 406mm (16") w x 2438mm (96") h x 102mm (4") d

  Emerald 16x48

• 3 tiles /set 1.5m² (16 SF)

• 406mm (16") w x 1219mm (48") h x 102mm (4") d

  Emerald 16x24

• 6 tiles / set 1.5m² (16 SF)

• 406mm (16") w x 610mm (24") h x 102mm (4") d

  Emerald 16x16

• 8 tiles / set 1.36m² (14.25 SF)

• 406mm (16") w x 406mm (16") h x 102mm (4") d

Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester

12mm (1/2") - Density 2.4 kg /m² 0.5 lb/ft²

Zintra is made from 100% recyclable materials.

• 60% post-consumer recycled content from PET bottles.

• 35% pre-consumer recycled content from PET chips

• 5% polylactic acid (PLA)

ASTM-E84 – Class A classification
AS ISO 9705 – 2003 – Group 1 classification
EN-13501 – B-s2-d0 classification

Visit FAQ for more details.

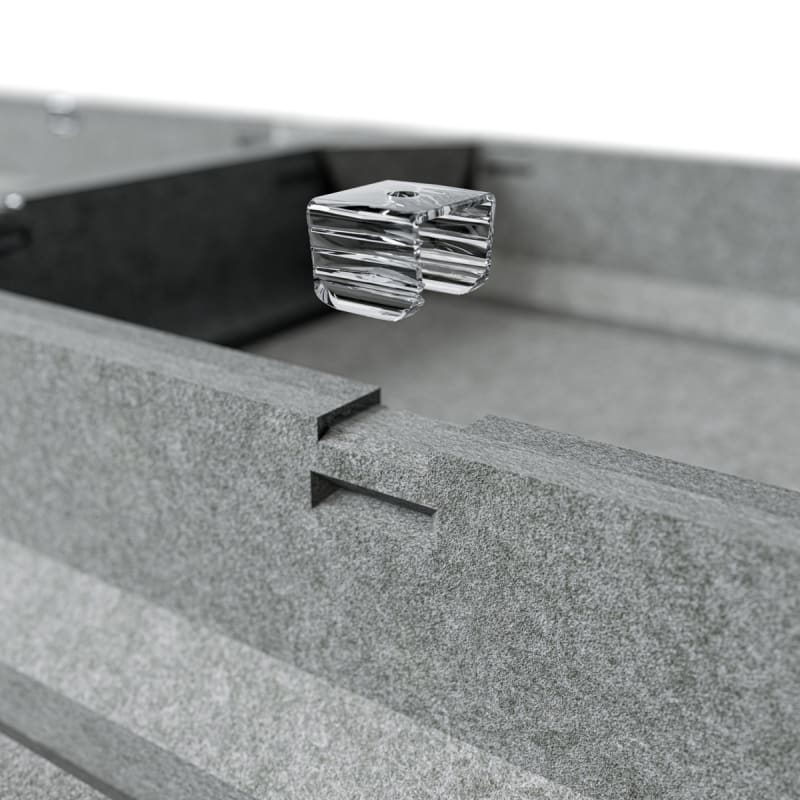

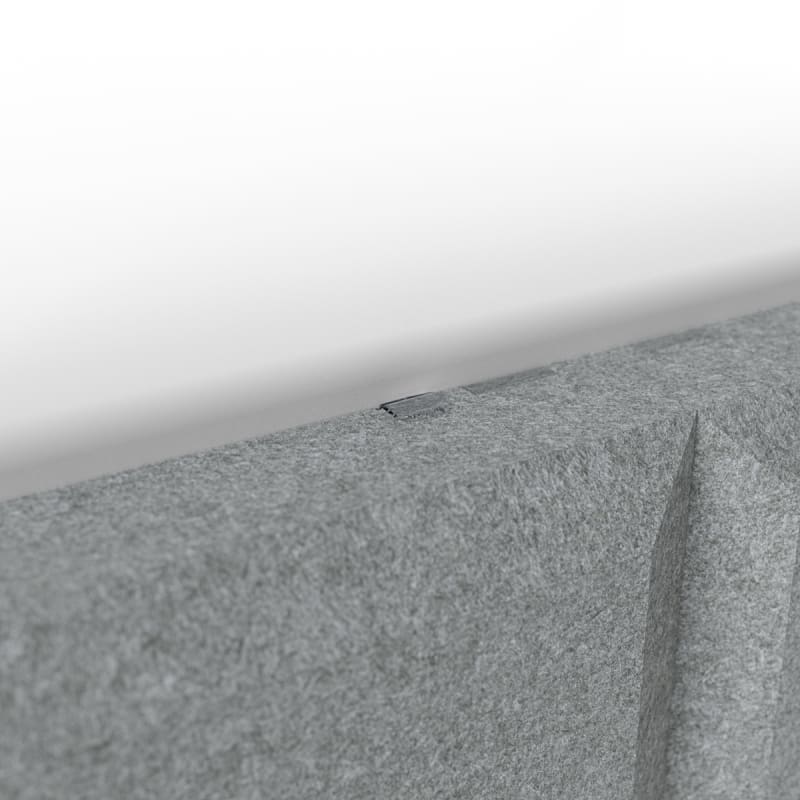

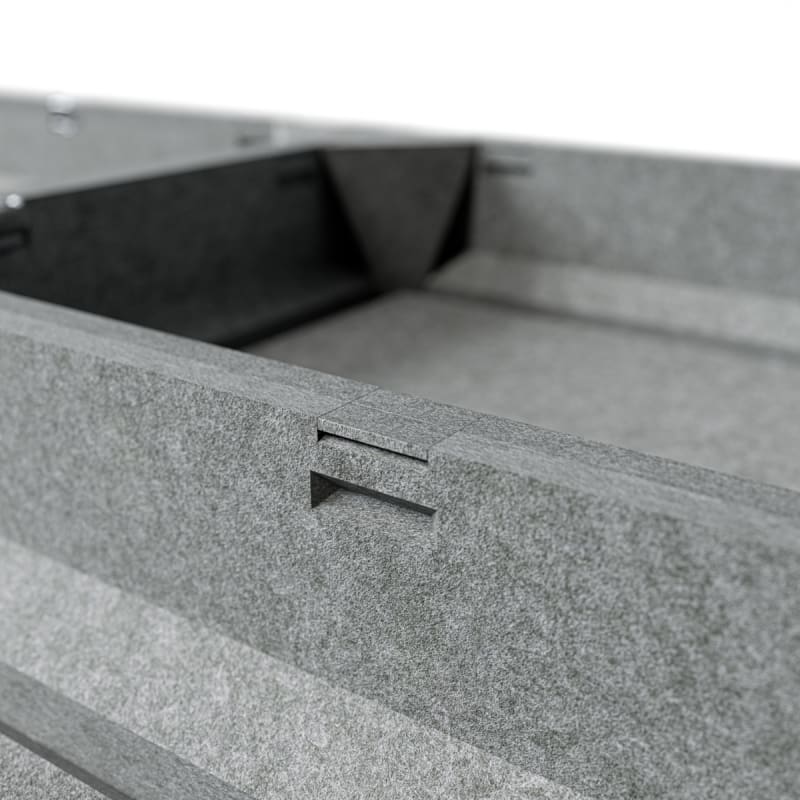

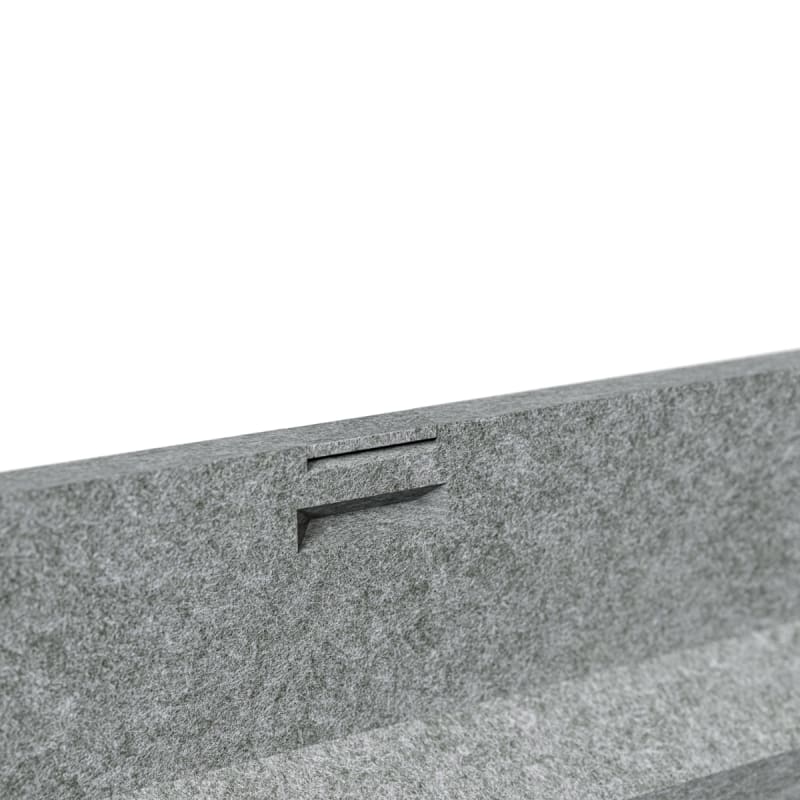

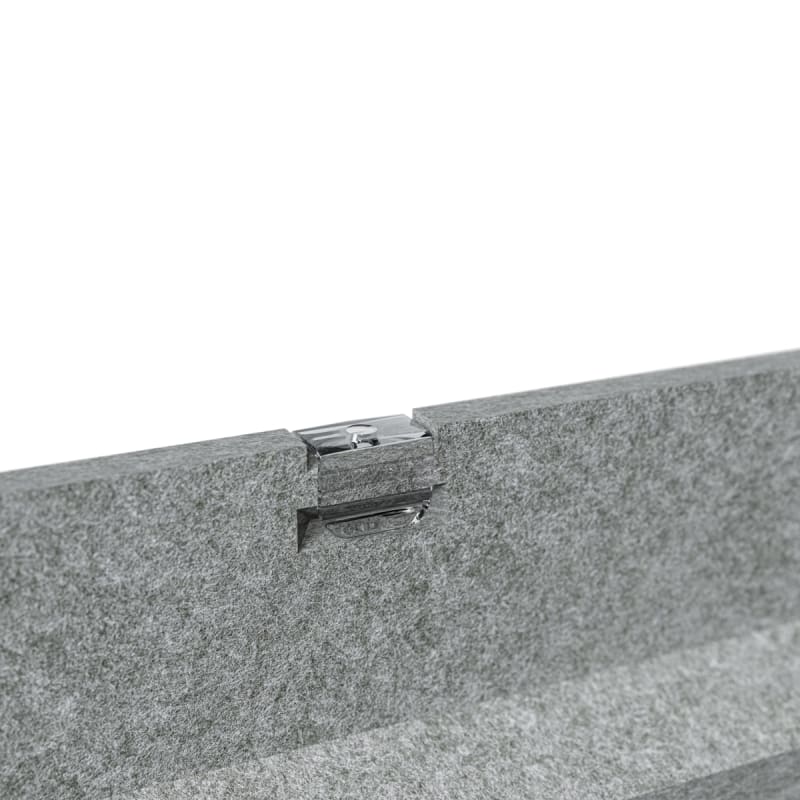

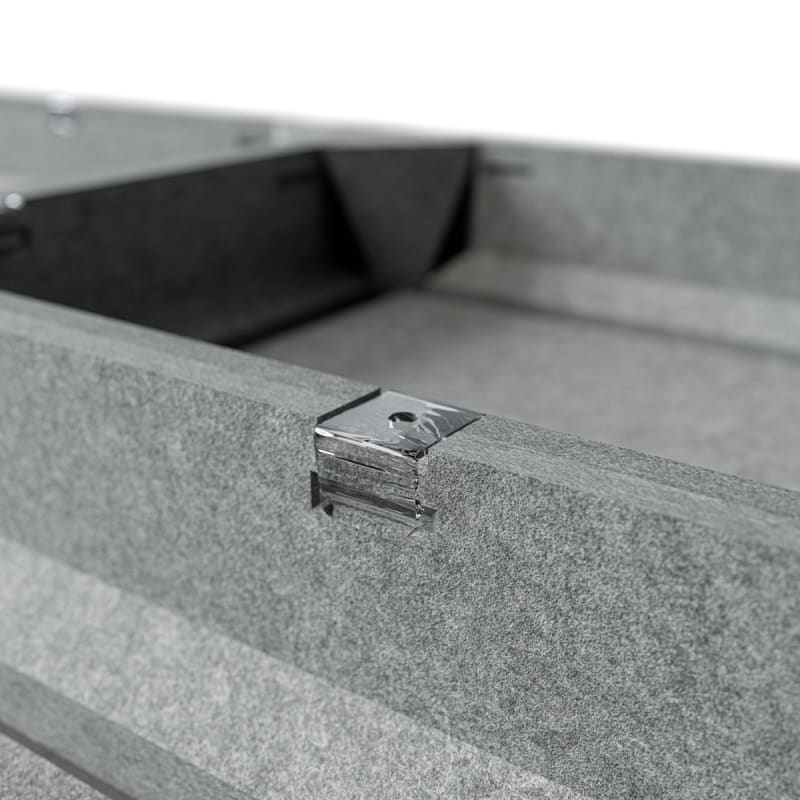

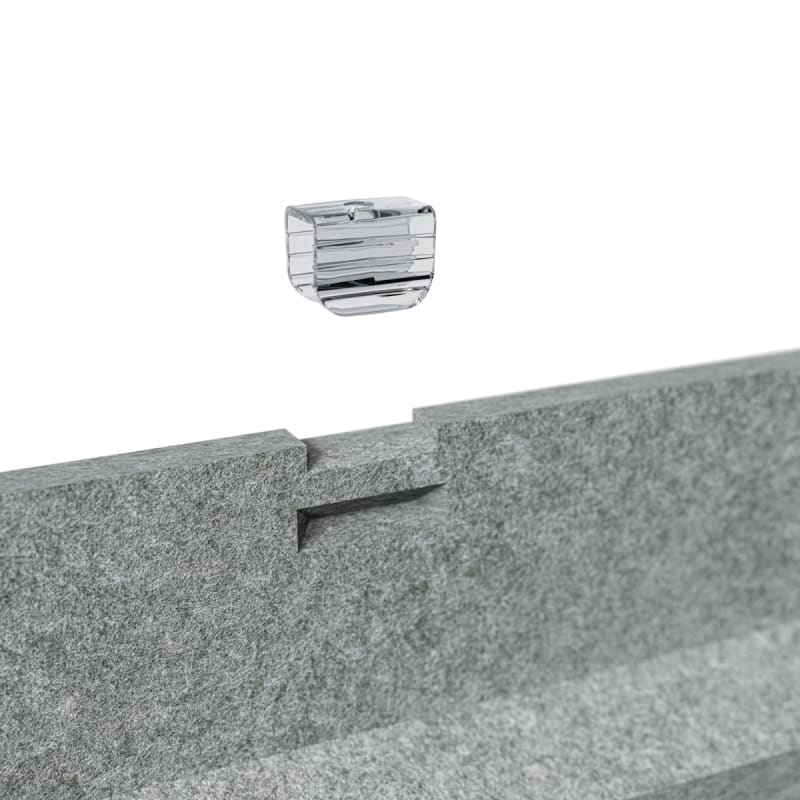

Ships Flat Packed. Assembly Required.

• Supplied as a set of individual tiles.

• Arrange as required.

Go to the Technical Documents and download the Installation Guide for more details.

• Emerald 8x96 3 tiles /set, 1.5m² (16 SF)

• Emerald 8x48 5 tiles /set 1.25m² (13.35 SF)

• Emerald 32x96 1 tile / set 1.98m² (21.34 SF)

• Emerald 32x48 2 tiles / set 1.98m² (21.34 SF)

• Emerald 32x32 2 tiles / set 1.32m² (14.22 SF)

• Emerald 16x96 2 tiles /set 1.98m² (21.34 SF)

• Emerald 16x48 3 tiles /set 1.5m² (16 SF)

• Emerald 16x24 6 tiles / set 1.5m² (16 SF)

• Emerald 16x16 8 tiles / set 1.36m² (14.25 SF)

Go to Technical Documents and download the Installation Guide for more details.

1. Select Design

2. Select Zintra Colour

Vacuum to remove dust.

Dab Zintra with a damp clean cloth and mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint free cloth.

For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water dampened cloth, then pat dry.

Always test in an inconspicuous area first and if you don't see the expected results, contact us.

The Zintra Acoustic Solutions range is customisable to your project. Please get in touch with your local contact for details.

• NRC up to 1.15 Directly Mounted

• Alpha-w Directly Mounted up to 1.00
