Etch Panel Craze

Zintra Etch, where acoustic absorption meets dynamic 3D design. With a range of subtle textures, Zintra Etch brings cutting-edge aesthetics and acoustic functionality to your commercial, hospitality, or institutional interior.

Discover the extensive selection of understated to statement Colours in Zintra Etch, allowing you to create a welcoming atmosphere while effectively managing sound. This cost-effective sound and design solution cultivates calming environments, promoting productivity and well-being.

Zintra Etch seamlessly integrates with plain Zintra panels, offering versatility in design coordination. You can also explore the option of replicating your unique Etch pattern in Zintra on Zintra, for a truly customised solution.

Experience the benefits of Zintra Etch, including pattern matching with seamless hidden joins (excluding VJ Angle and Kaleido). The panel size enables join-free installations from floor to ceiling, making the fitting process effortless.

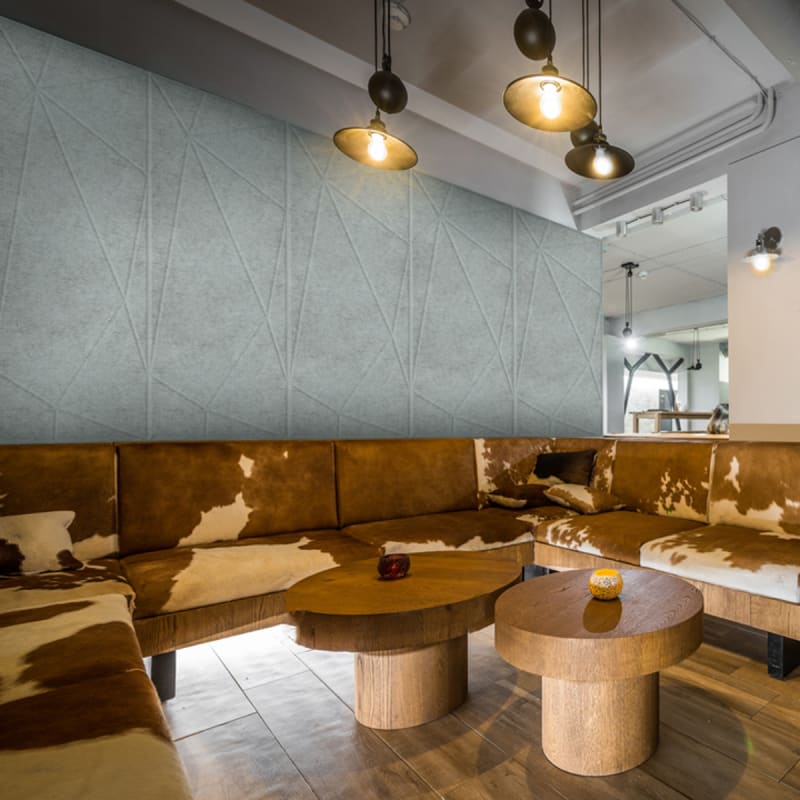

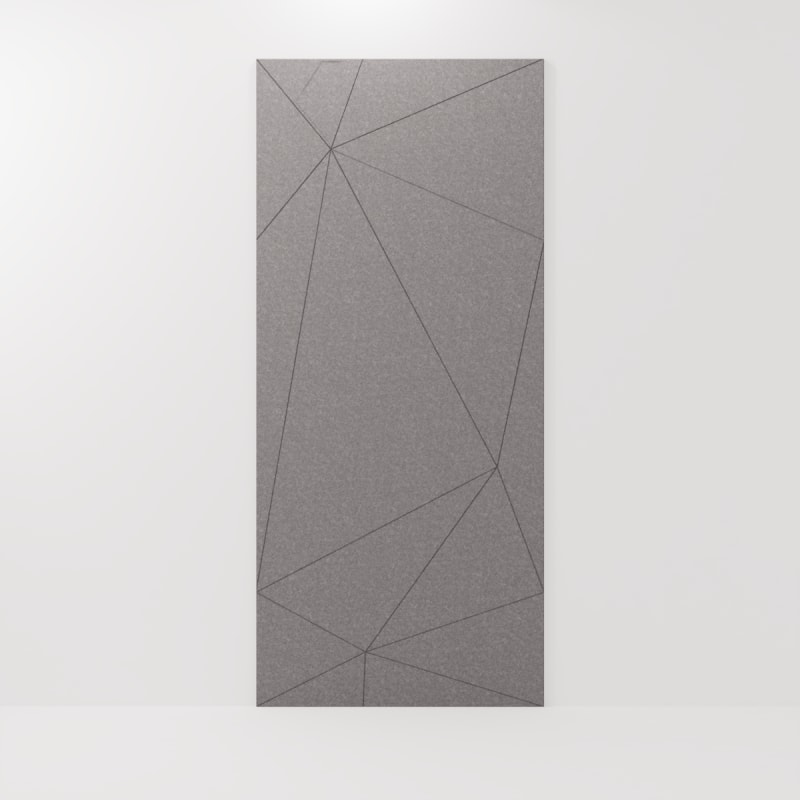

Craze: Where intricate geometrical patterns mimic the allure of cracked glass, creating a stunning visual symphony of fractured elegance and modern artistry.

Zintra Etch is available in 15 great designs

Craze | Cubix | Deviate | Kaleido | Lamella | Reed Bed | Sine | Spectrum | Tesselate | Tetris | Vino | VJ Board Angle | VJ Board Narrow | VJ Board Wide | Volta:

Etch is a 3mm deep V groove.

Not suitable as a free standing product.

1219mm (48”) x 2743mm (108”) x 12mm (½”)

Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester

12mm (1/2") - Density 2.4 kg /m² 0.5 lb/ft²

Zintra is made from 100% recyclable materials.

• 60% post-consumer recycled content from PET bottles.

• 35% pre-consumer recycled content from PET chips

• 5% polylactic acid (PLA)

ASTM-E84 – Class A classification
AS ISO 9705 – 2003 – Group 1 classification
EN-13501 – B-s2-d0 classification

Visit FAQ for more details.

Ships Flat Pack

Install using one of these four common techniques.

1. Direct to the substrate

2. Z-Clips

3. Stand Offs

4. Mechanical Fastener

Go to the Technical Documents and download the Installation Guide for more details.

Zintra Etch panel in selected pattern

Go to Technical Documents and download the Installation Guide for more details.

Utility knife and CNC with oscillating knife.

1. Select Etch design

2. Select Zintra Colour

Vacuum to remove dust.

Dab Zintra with a damp clean cloth and mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint free cloth.

For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water dampened cloth, then pat dry.

Always test in an inconspicuous area first and if you don't see the expected results, contact us.

The Zintra Acoustic Solutions range is customisable to your project. Please get in touch with your local contact for details.

NRC 0.45 -0.95
