Baffle Systems Bolt

A modern solution for acoustic control, Zintra Baffles are a prefabricated, ceiling mounted system. Showcasing Zintra’s flexible characteristics and offering superior acoustic control, Zintra Acoustic Baffles are an innovative replacement to traditional mineral fibre lay systems.

By exposing the ceiling, Zintra baffles create an open and airy atmosphere while efficiently mitigating noise levels.

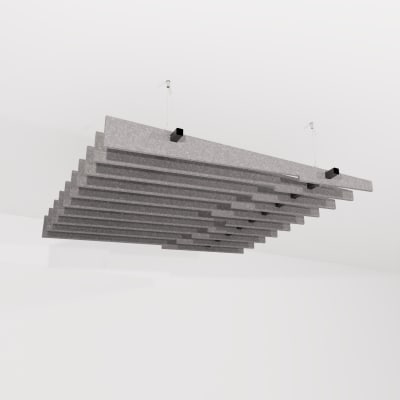

Bolt

A dynamic and electrifying blade design, reminiscent of a lightning bolt. Its striking pattern evokes a sense of energy and motion.

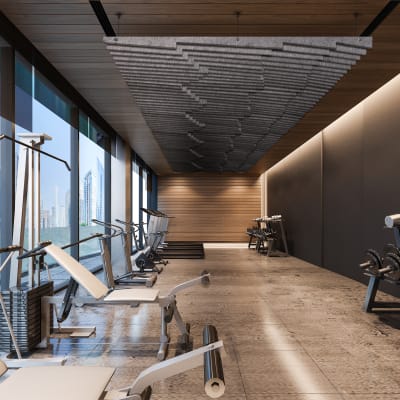

Easy to assemble, easy to install and available in a large array of designs, baffles are ideally suited to large noisy spaces in educational institutions, shopping centres, restaurants, and airports.

Available in 11 designs

Bolt | Canyon | Gorge | Individual | Louvre | Quarter | Ridge | Square | Swell | V-Fold | Wave

Combining a dynamic aesthetic appeal and acoustic performance these systems are supplied ready to install with minimum fuss. A great advantage of the vertical blades is the increased surface area that is presented to the room resulting in a greater absorption of sound compared to flat panels.

Zintra Baffles present a modern and budget-friendly solution for cultivating a tranquil and efficient workspace.

Choose from one of our 12 vibrant powdercoat colors (additional charge)

Available in 2 sizes, Small Baffle and Large Baffle.

• Small: 1220mm (48") w x 1220mm (48") d

• Large: 1220mm (48") w x 2745mm (108") d

  Available in 120mm (4.7") or 240mm (9.5") high

Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester

12mm (1/2") - Density 2.4 kg /m² 0.5 lb/ft²

Zintra is made from 100% recyclable materials.

• 60% post-consumer recycled content from PET bottles.

• 35% pre-consumer recycled content from PET chips

• 5% polylactic acid (PLA)

ASTM-E84 – Class A classification
AS ISO 9705 – 2003 – Group 1 classification
EN-13501 – B-s2-d0 classification

Visit FAQ for more details.

Ships Flat Packed.

Assemble your Baffle System then suspend from the ceiling using hanging hardware supplied.

Go to the Technical Documents and download the Installation Guide for more details.

Bolt: 10 Zintra Blades

• Depending on size:

• 4 or 6 Adjustable Suspension Kit (ASK) | 4 or 6 Adjustable Fastener | 4 or 6 Hanger Bolts | 2 or 3 x Aluminium Tube with Notches | 4 or 6 x Aluminium End Caps | 2 or 3 x 24mm (1") Zintra Connectors

Go to Technical Documents and download the Installation Guide for more details.

1. Select Design

2. Select Size

3. Select Zintra Colour

Vacuum to remove dust.

Dab Zintra with a damp clean cloth and mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint free cloth.

For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water dampened cloth, then pat dry.

Always test in an inconspicuous area first and if you don't see the expected results, contact us.

Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester

12mm (1/2") - Density 2.4 kg /m² 0.5 lb/ft²

NRC Rating

• Without Air Gap: Up to 0.95

• With 24" (610mm) Air Gap: Up to 1.00
