Add sculptural on-trend geo-accents to your ceiling space with Connect Prismatic Baffles. Designed for full ceiling coverage.

Zintra

Features

Acoustic

Bleach Cleanable

Easy Clean

Easy Install

Product Specifications

Description

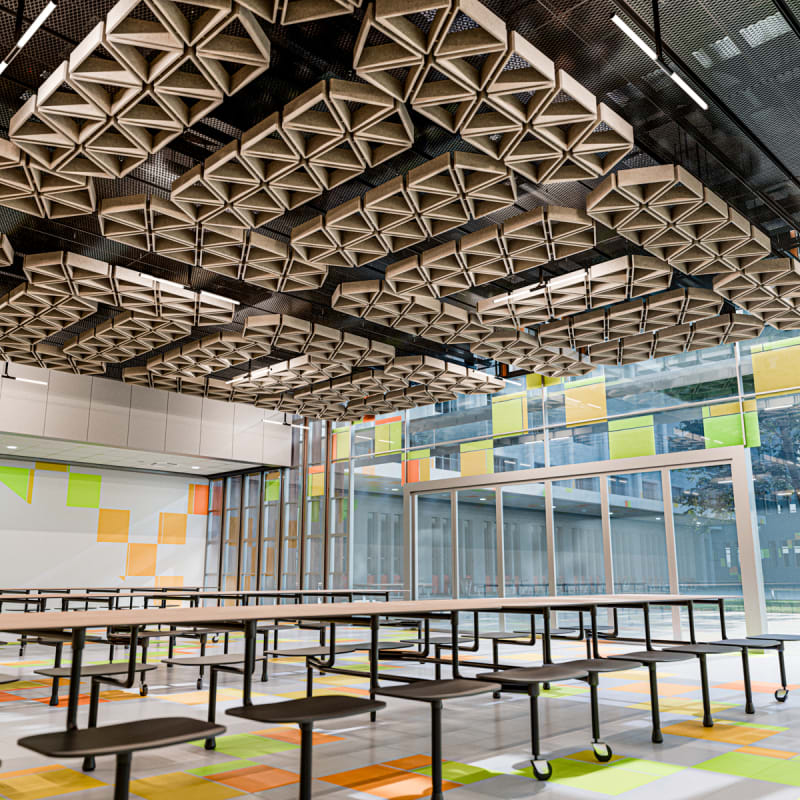

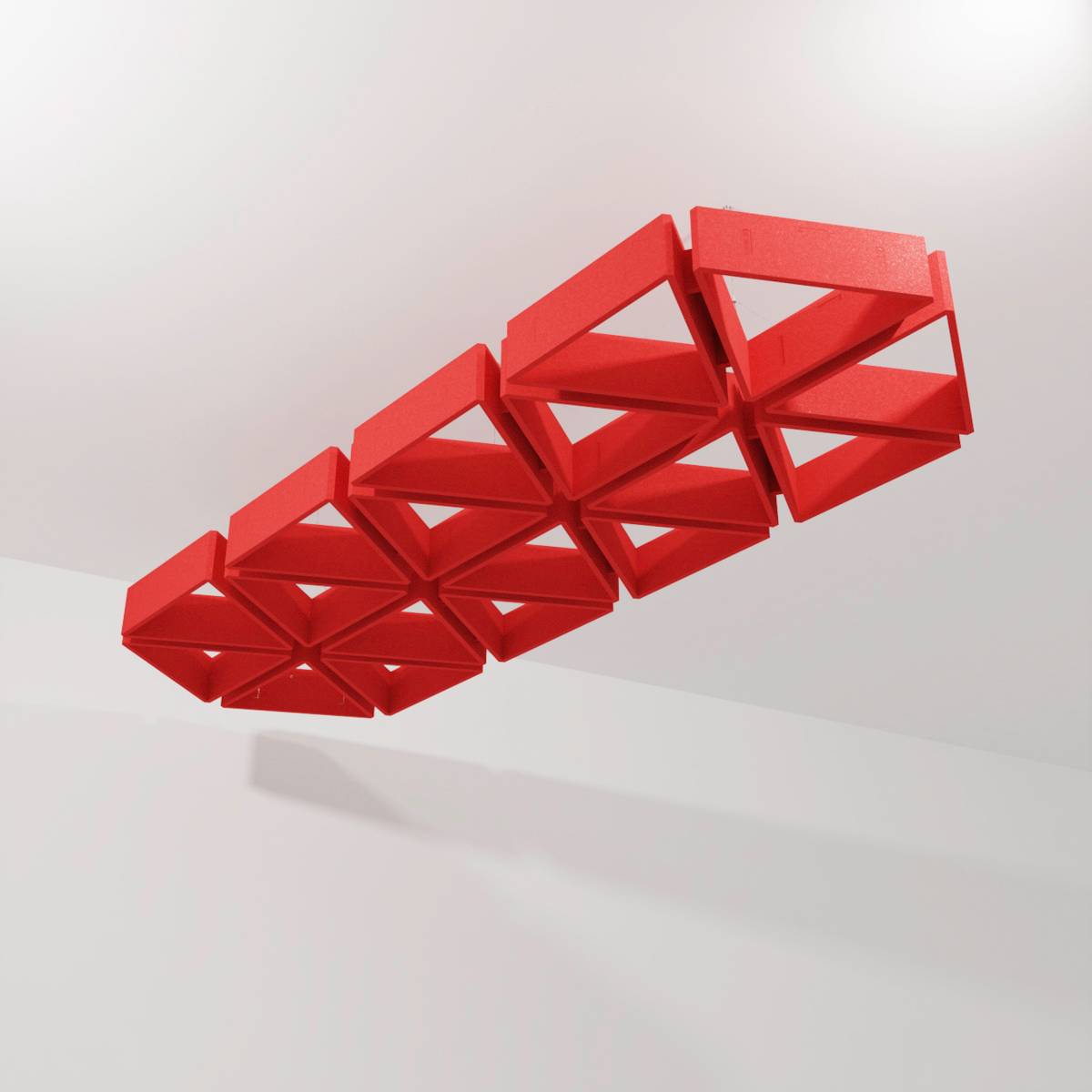

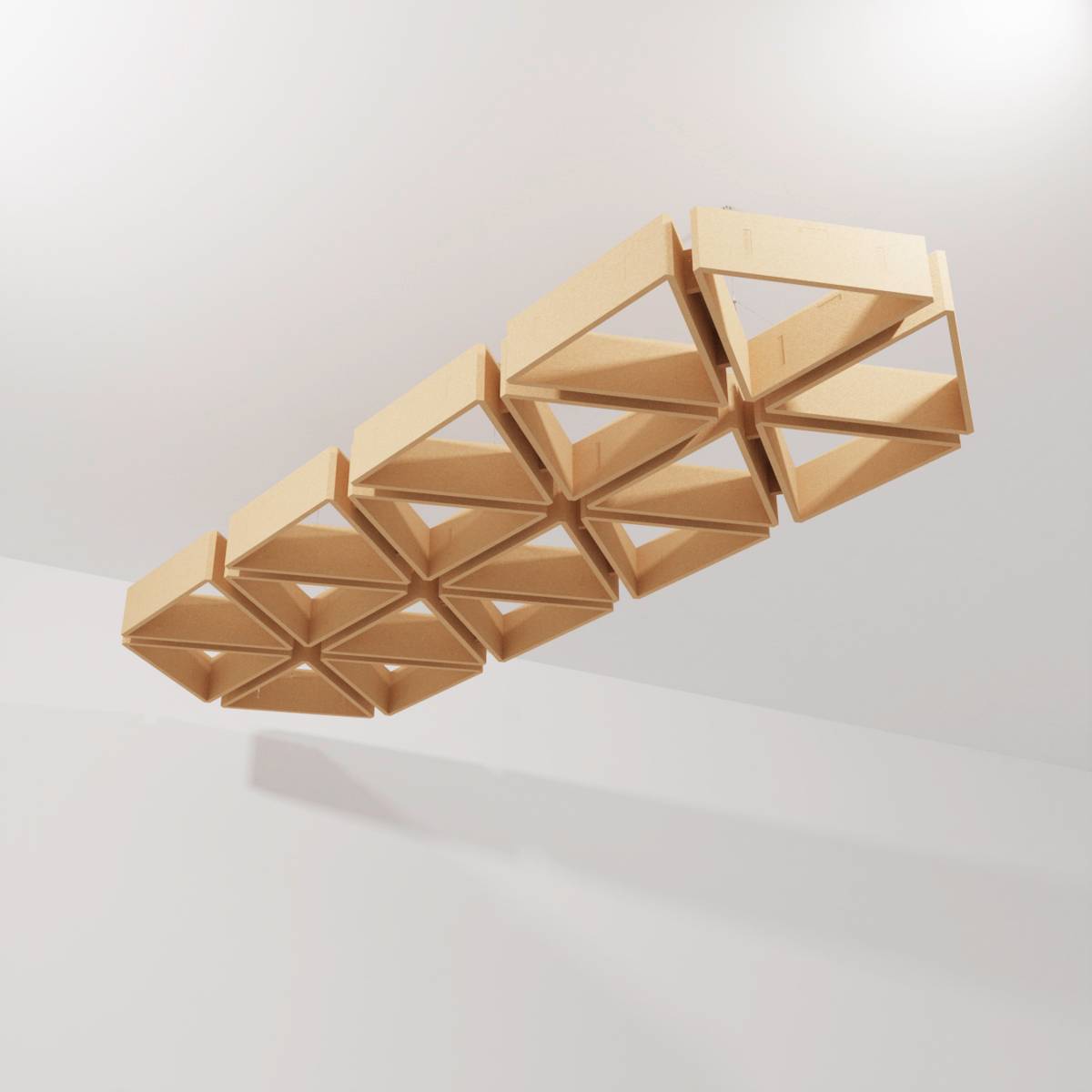

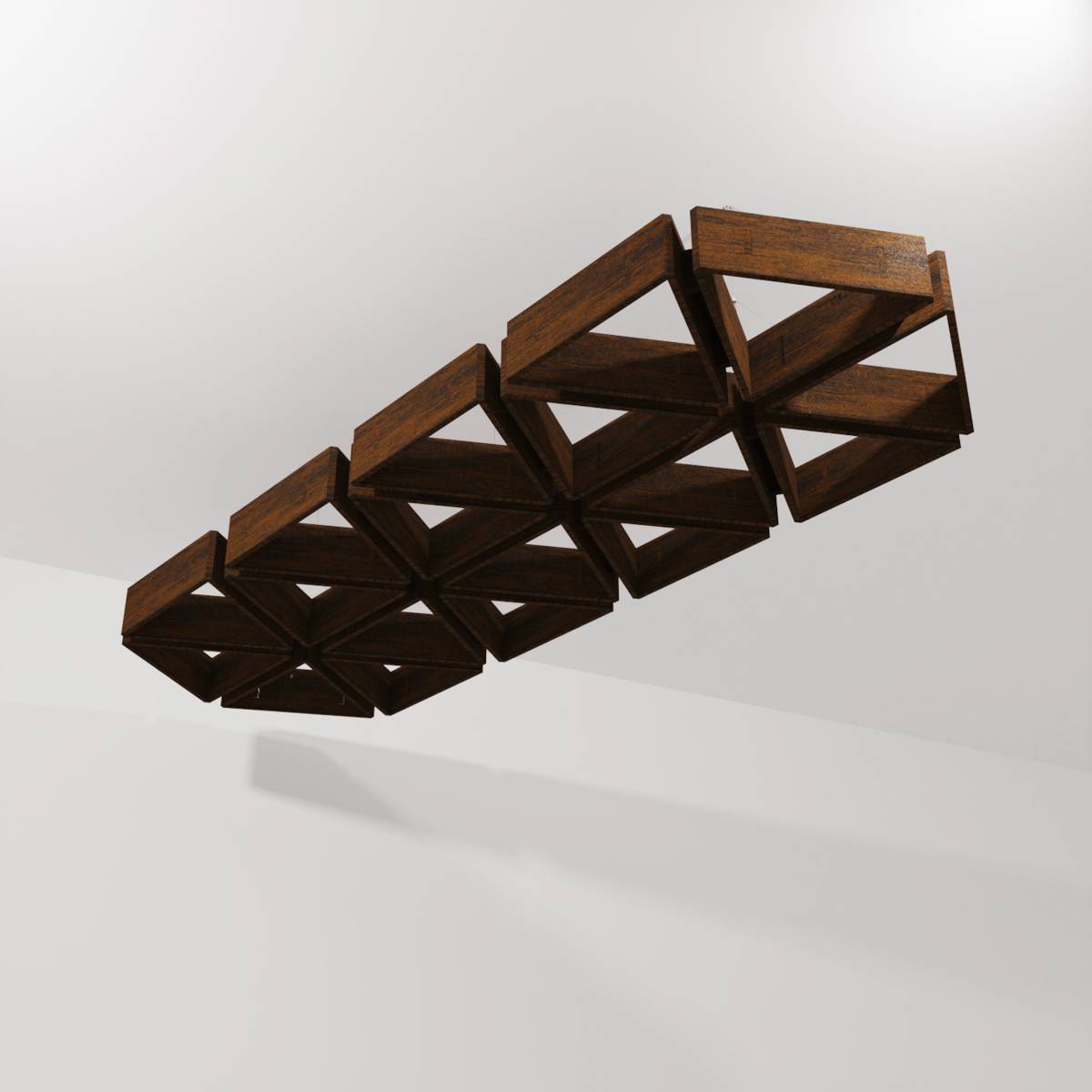

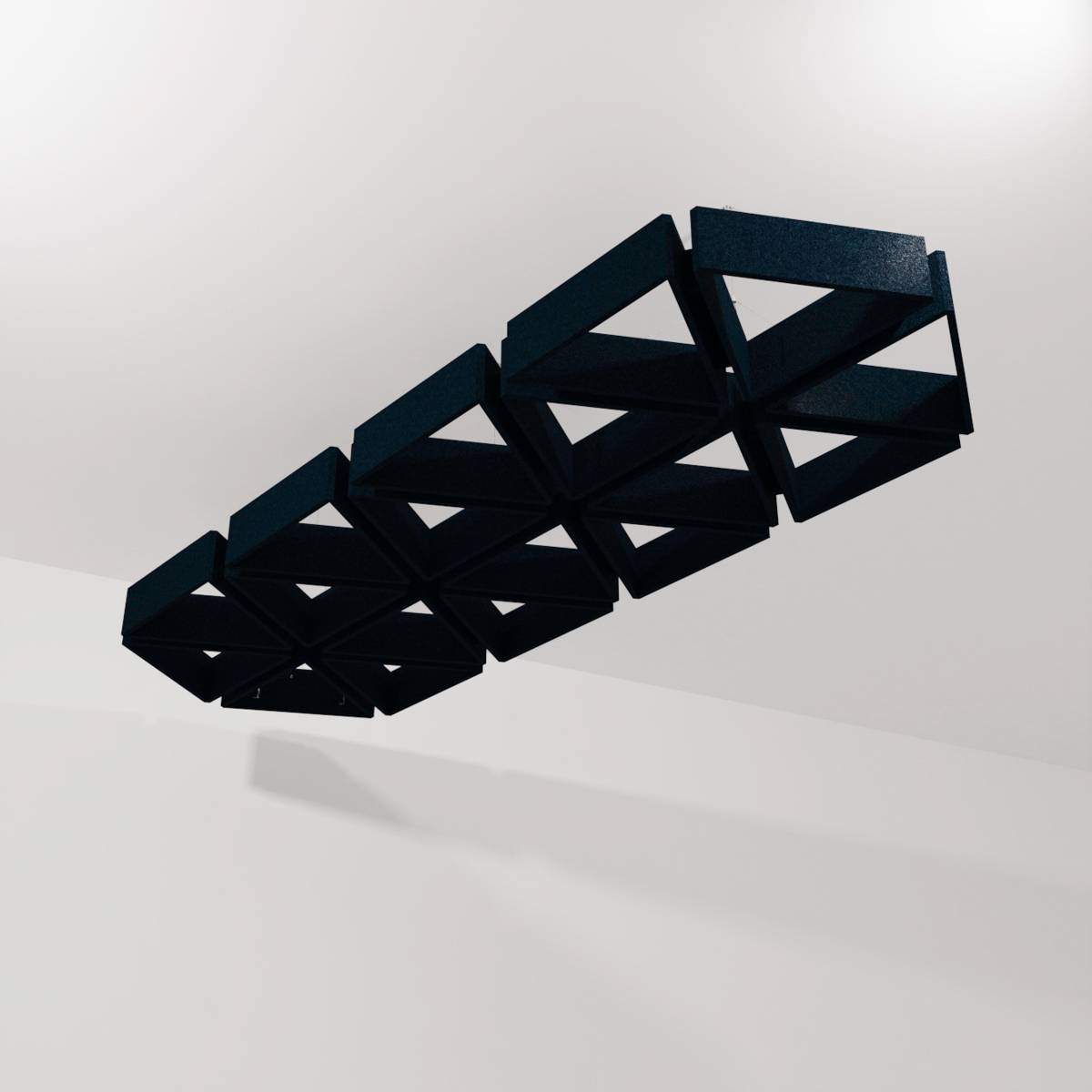

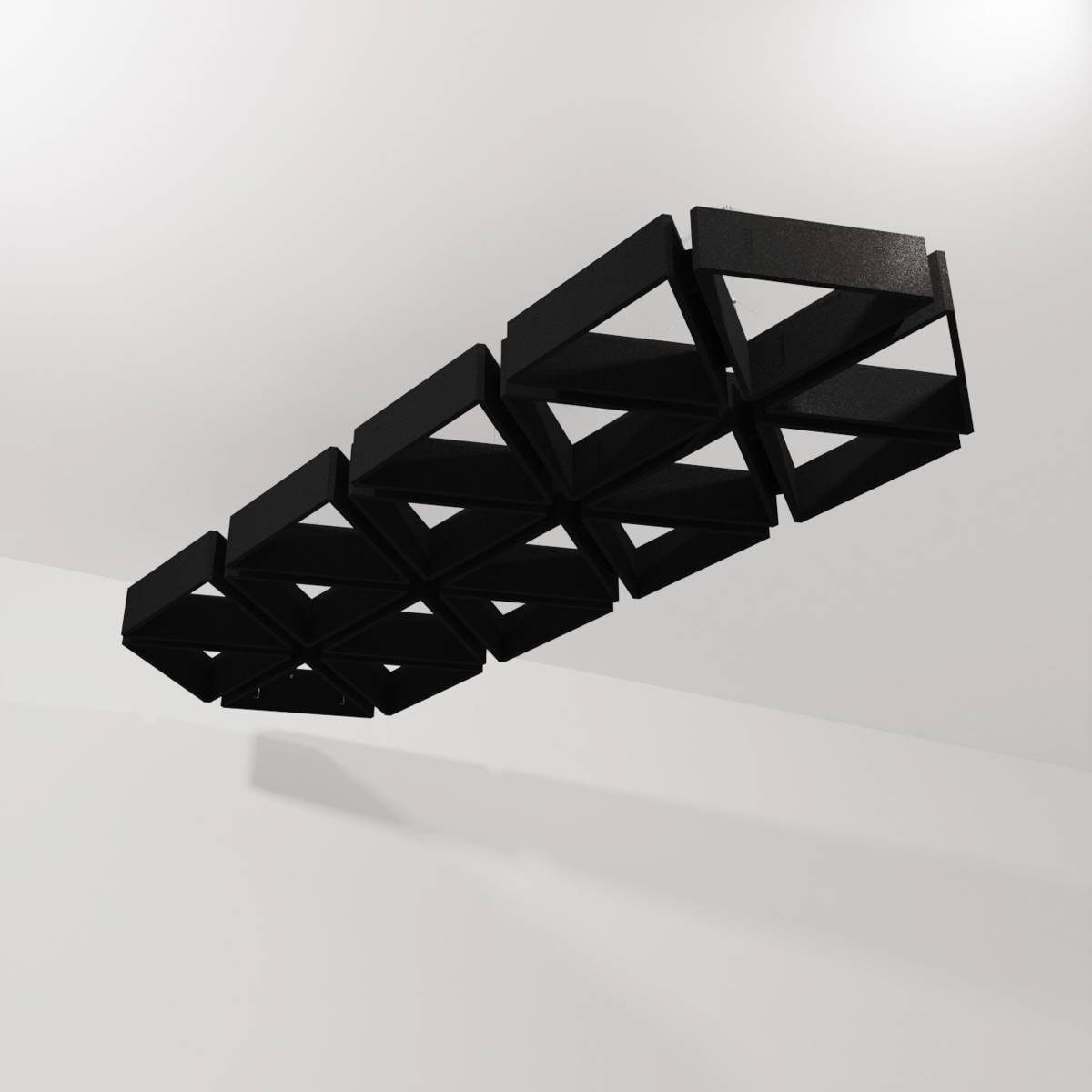

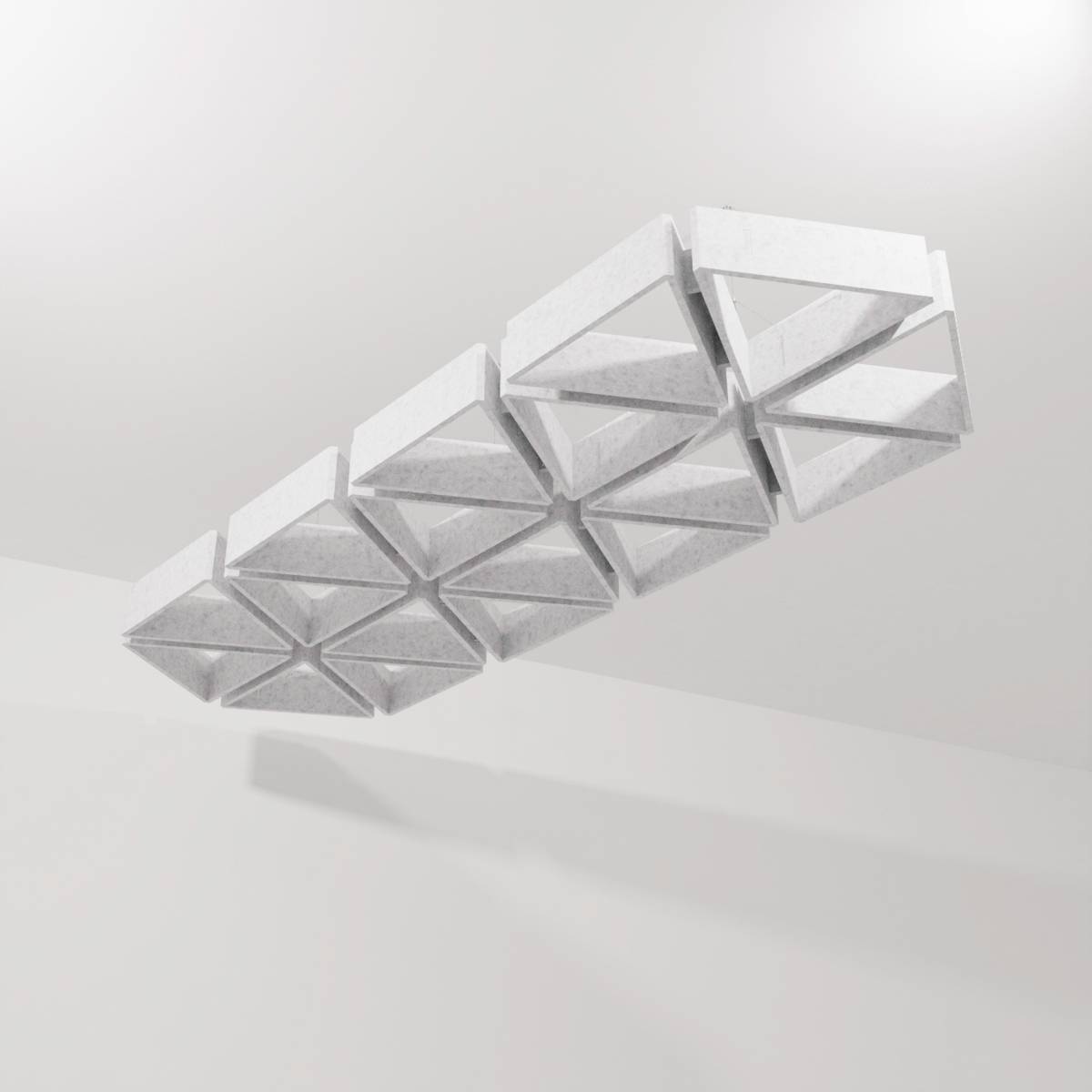

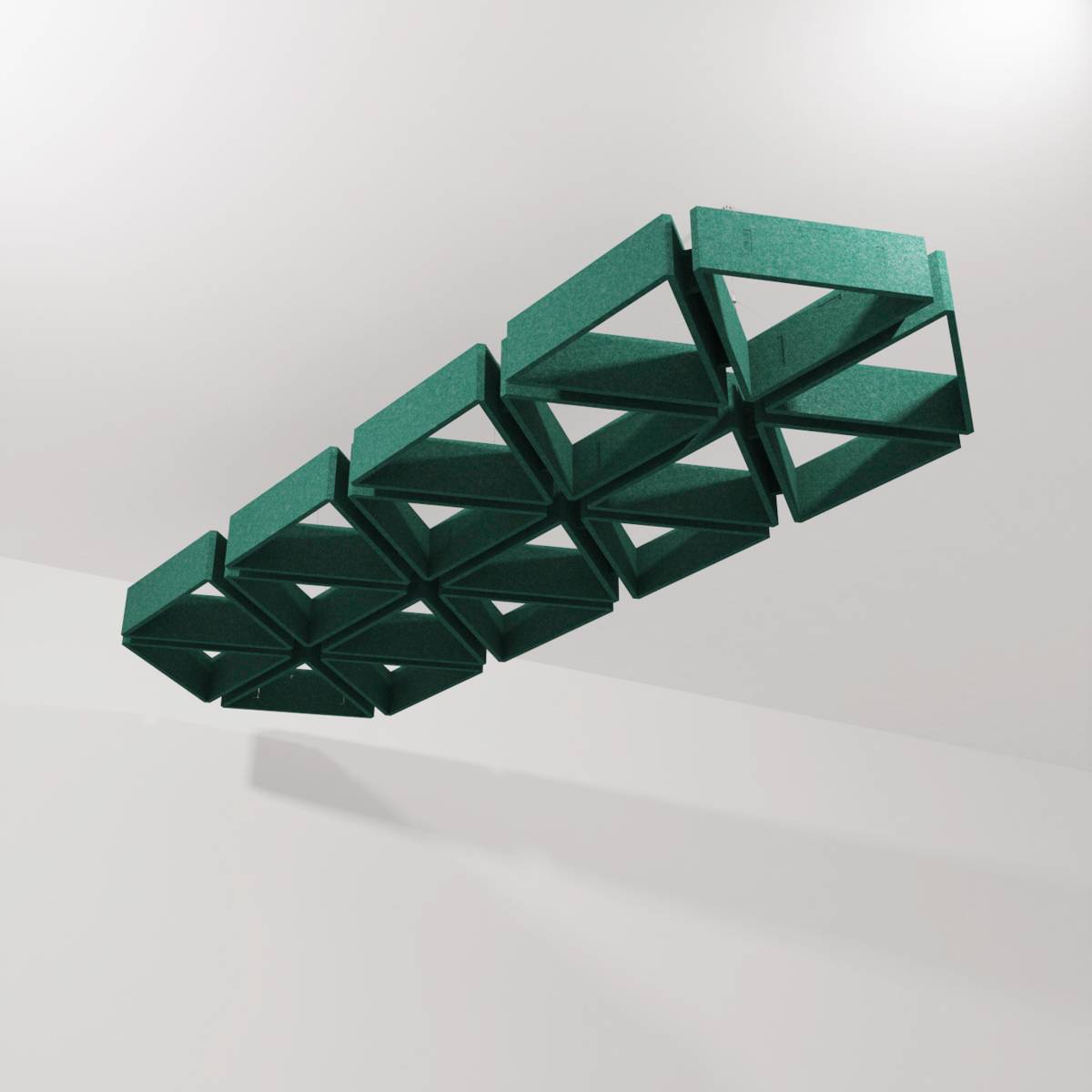

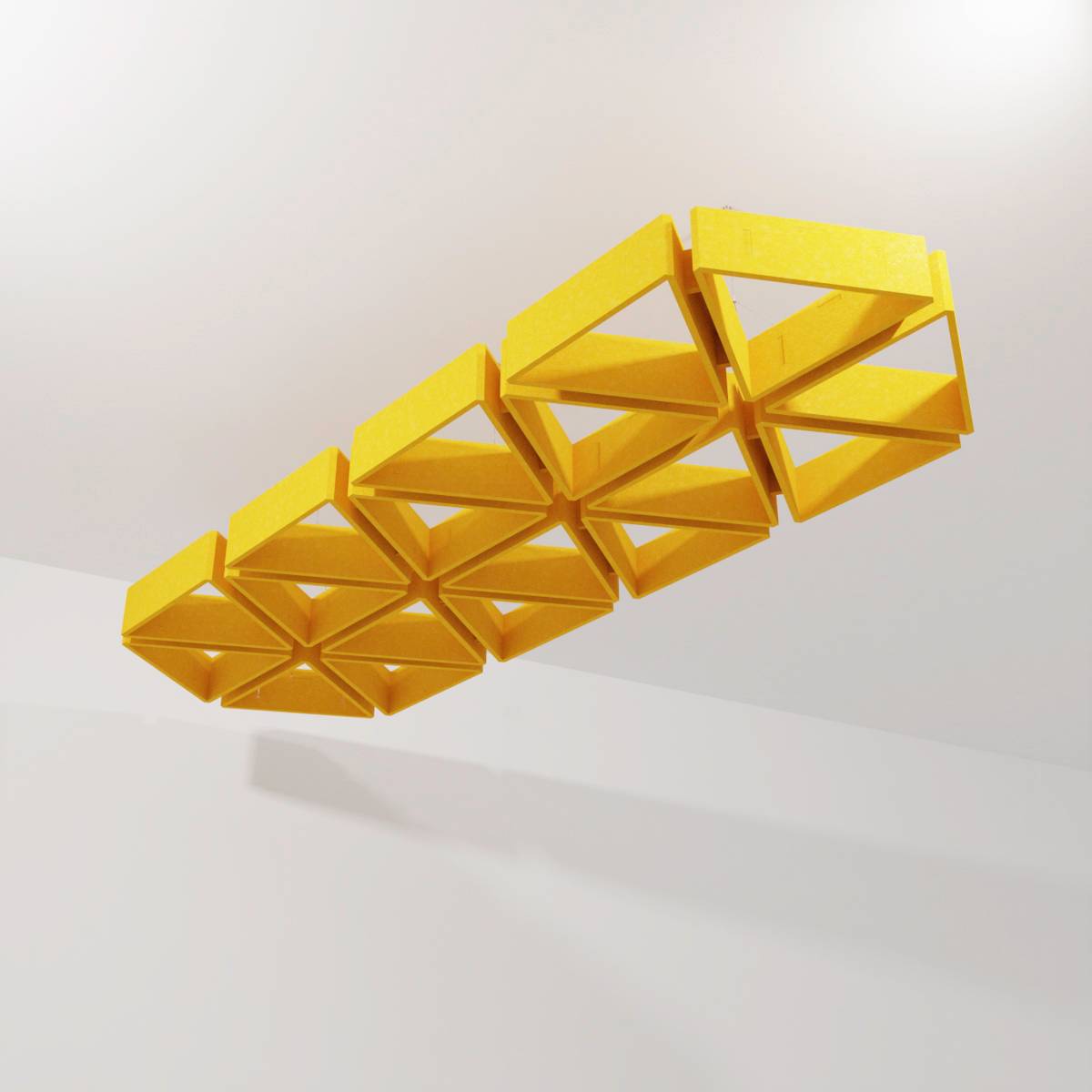

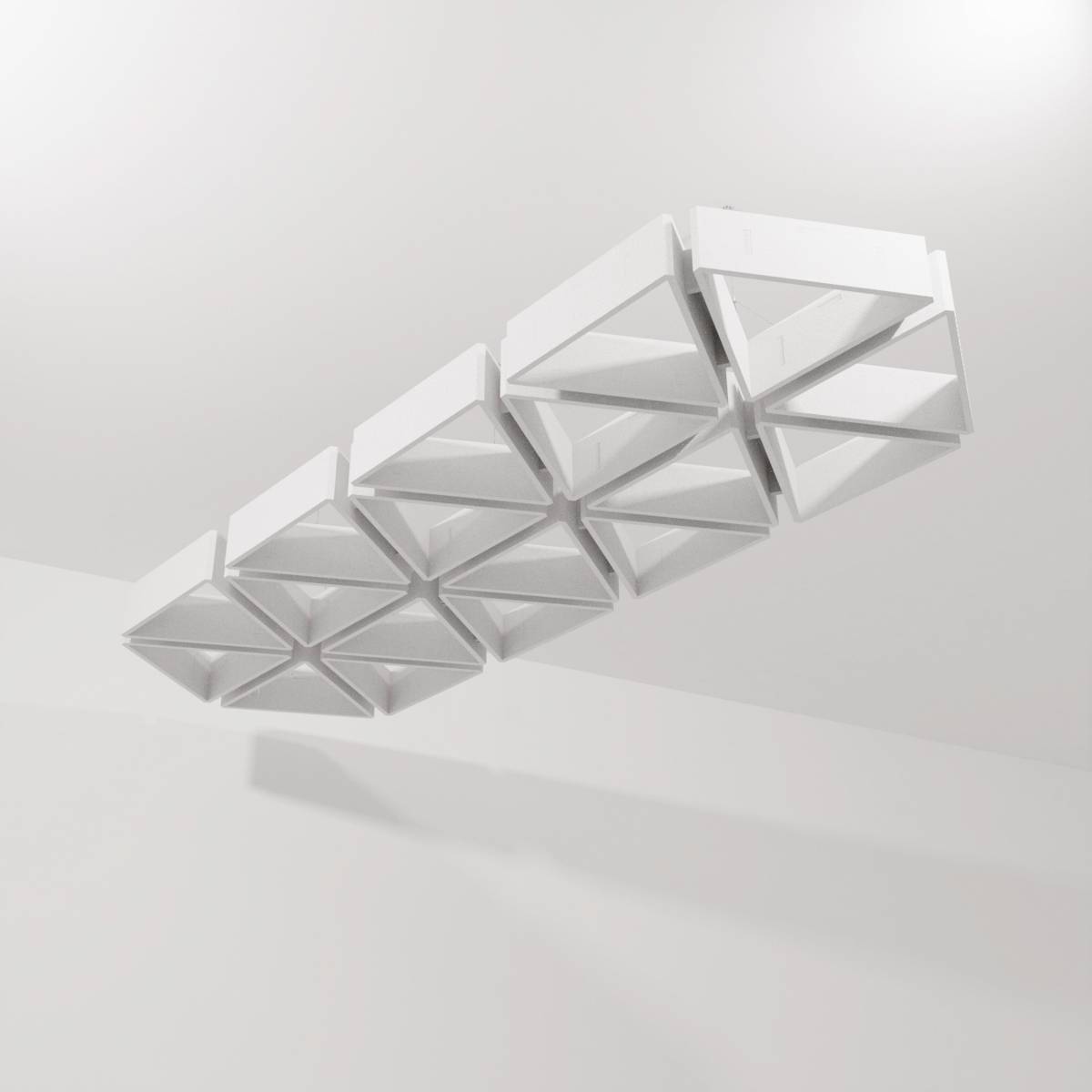

Add sculptural on-trend geo-accents to your ceiling space with Connect Baffles. An innovative solution to large areas requiring improved acoustics, Connect Baffle options are designed with full ceiling coverage in mind and will create a ceiling space with architectural shape, form and definitive character. Connect Prismatic features a collection of interconnected triangles, presenting a visually captivating and harmonious design. This pattern introduces a sense of structure and balance to interior spaces.

Connect Baffles are also available in 4 other great designs:

Cirrus is characterized by a linear, interconnected design, arranged in a flowing, cohesive formation. This pattern adds a sense of movement and unity to interior spaces.

Cubix features a grid of interconnected squares, creating a visually dynamic and orderly design. This pattern brings a sense of structure and balance to interior spaces.

Hive showcases a network of interconnected hexagons, offering a visually striking and cohesive design. This pattern introduces a sense of symmetry and harmony to interior spaces.

Rise showcases a combination of interconnected geometric shapes, including small rectangles and larger, randomized forms. This captivating design adds visual interest and complexity to interior spaces.

Dimensions

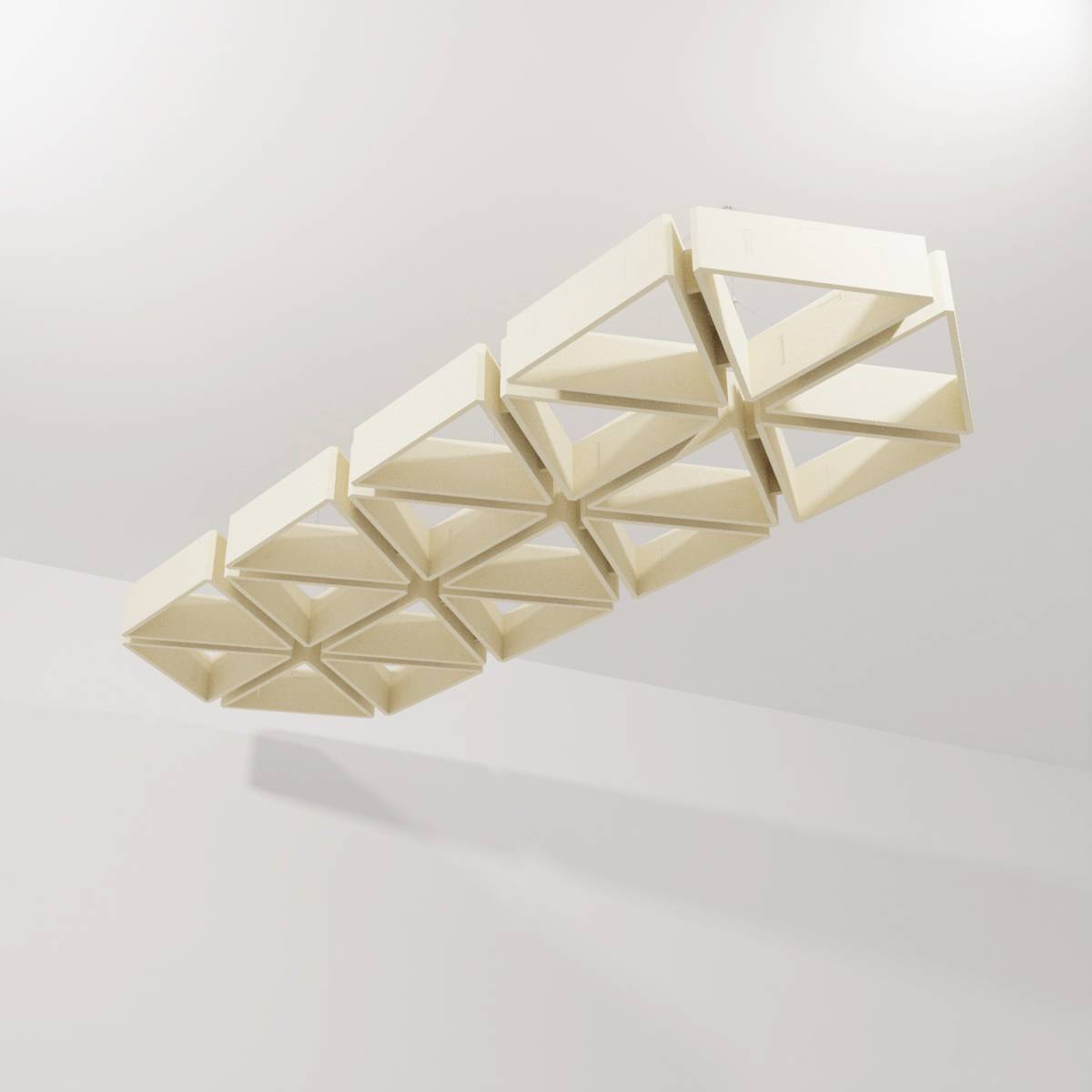

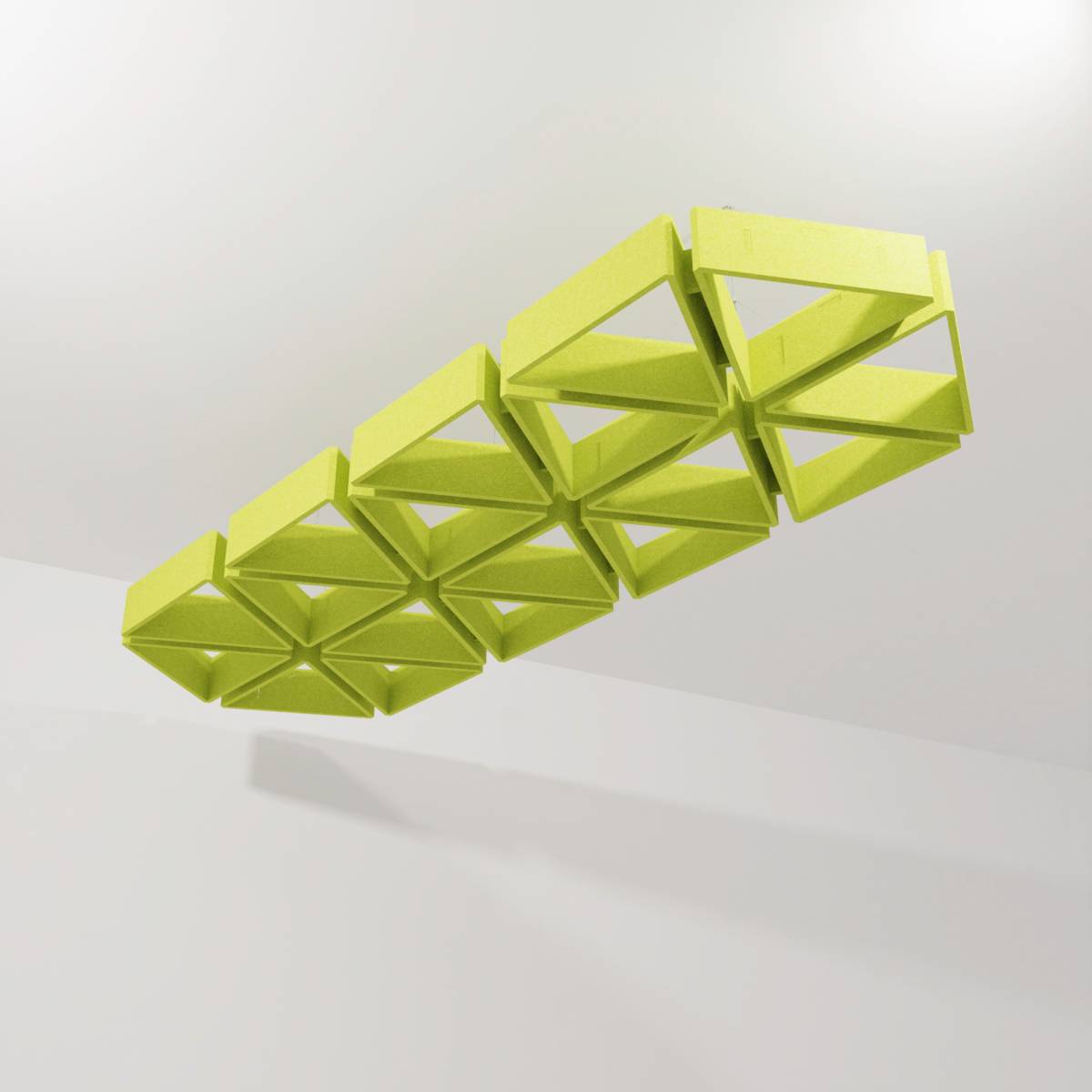

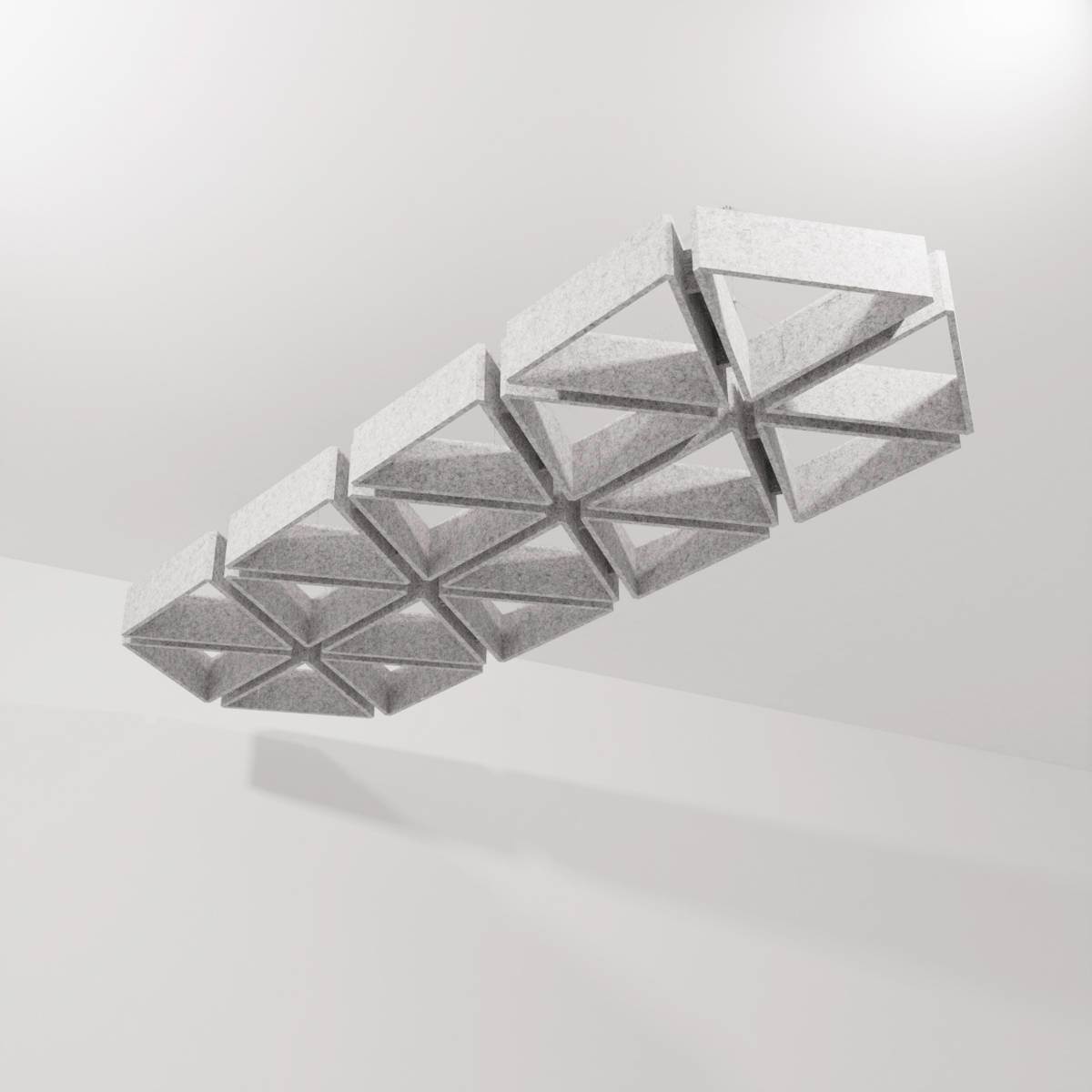

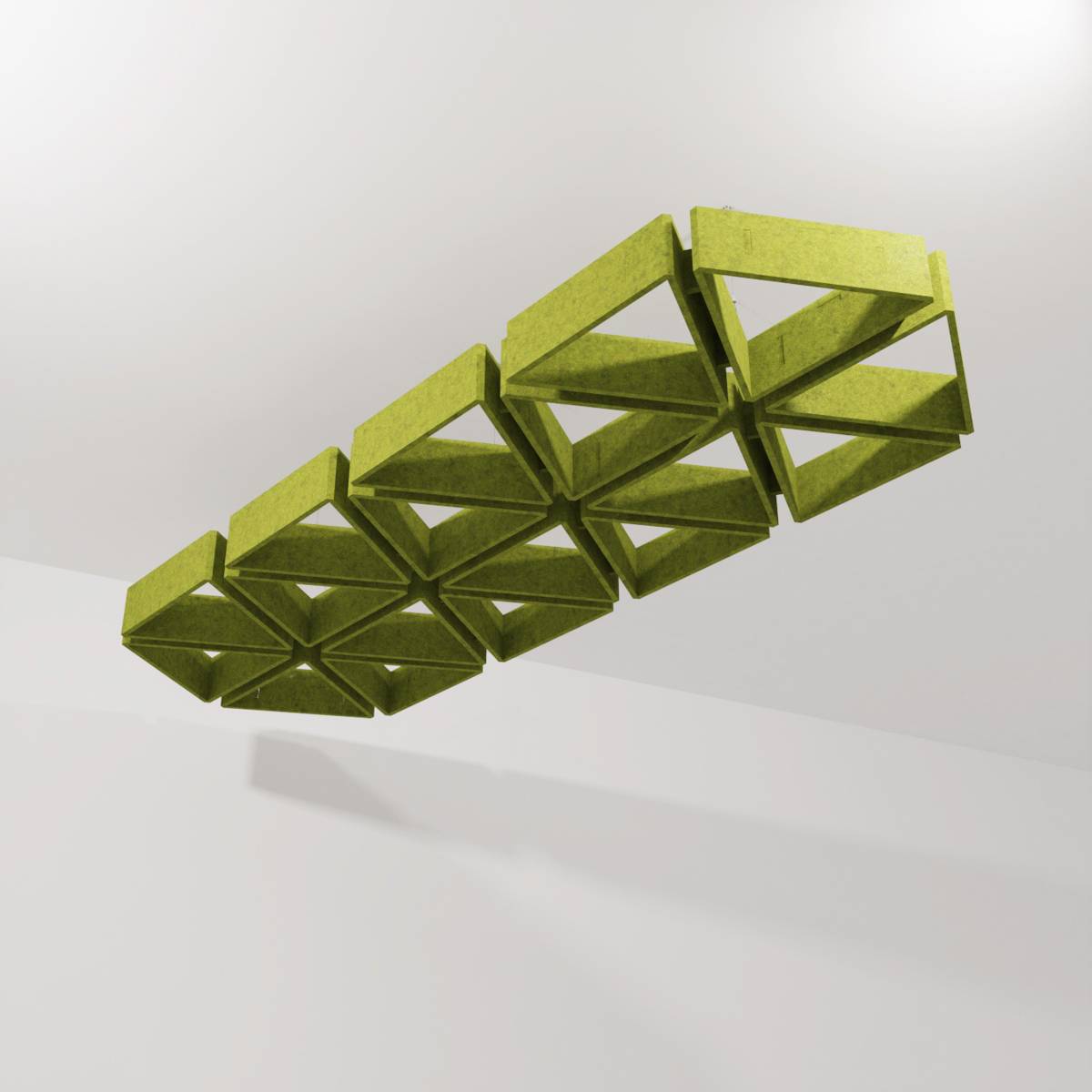

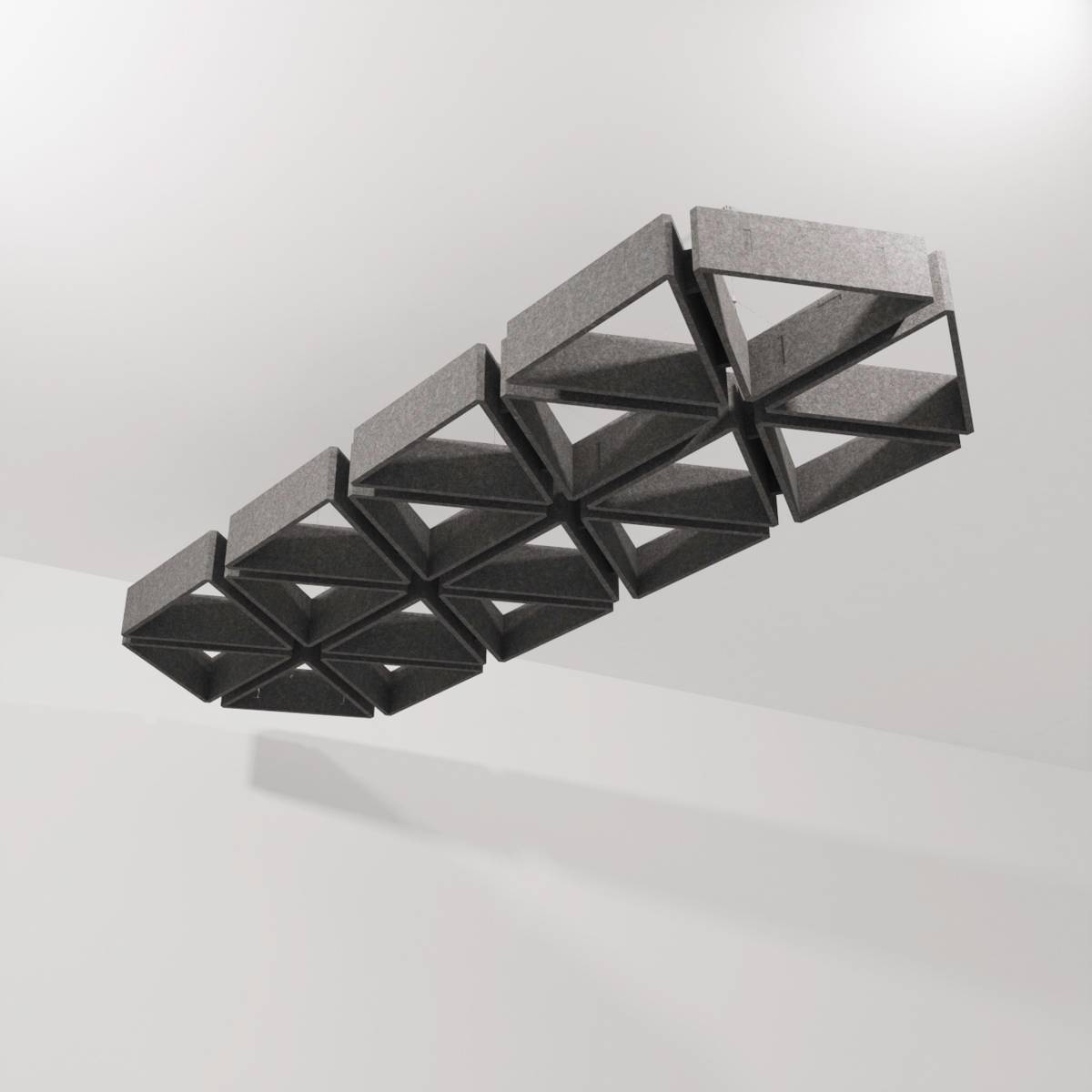

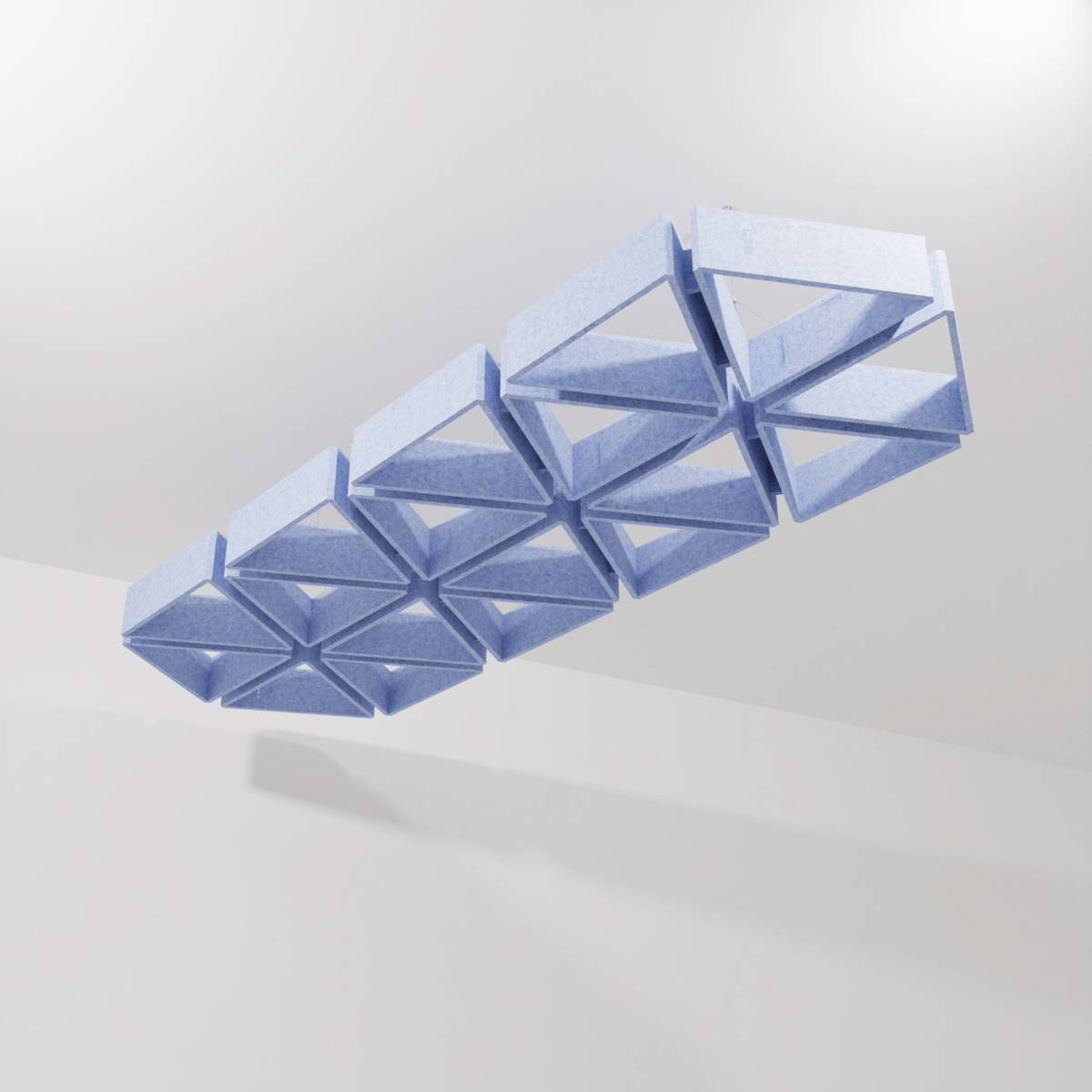

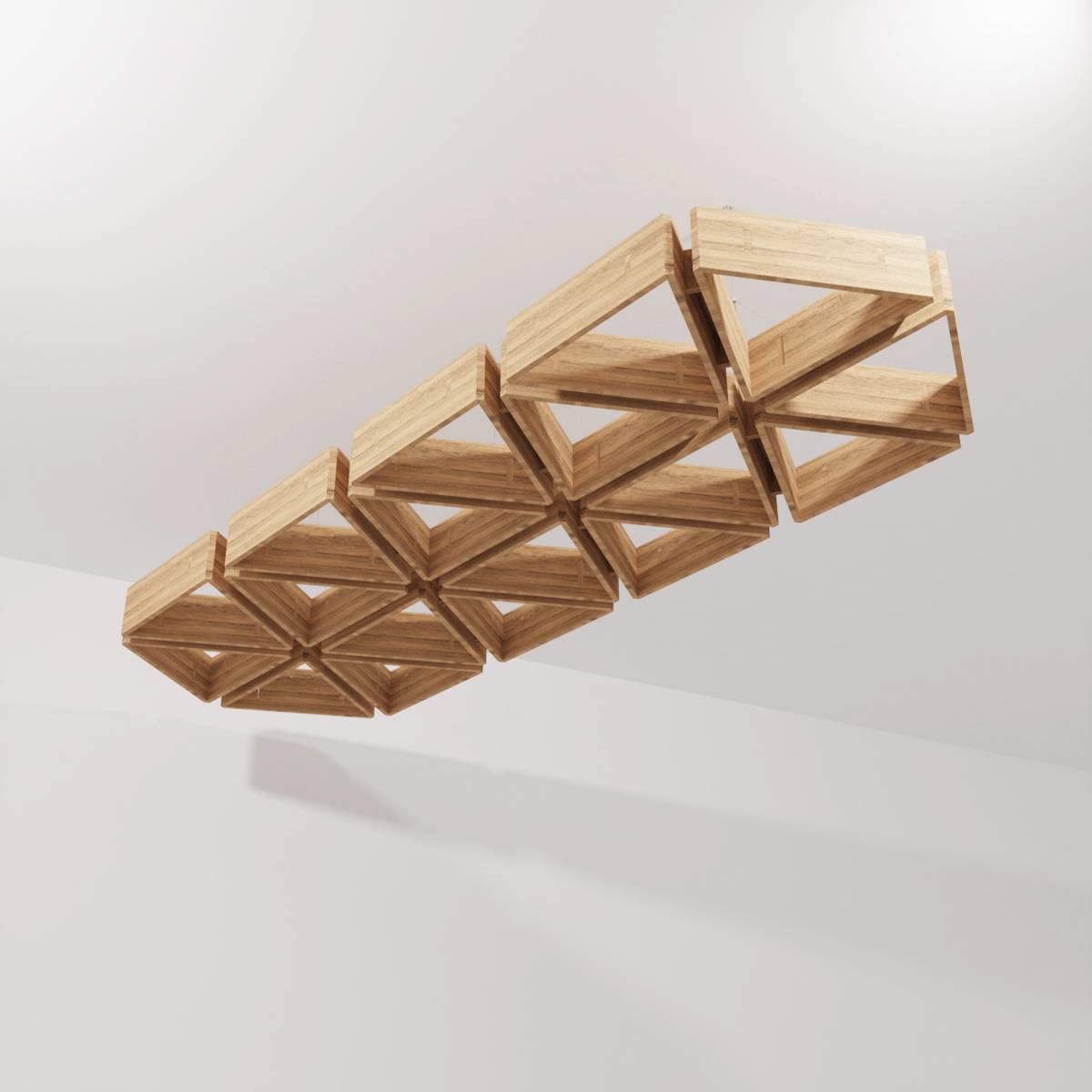

Prismatic

  • 18 triangles / set, 1.7m² (16.9 SF)

  • 768mm (30.2”) w x 2241mm (88.2”) d x 120mm (4.7”) h

Composition

Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester

12mm (1/2") -Density 2.4 kg /m² 0.5 lb/ft²

Sustainability

Zintra is made from 100% recyclable materials.

  • 60% post-consumer recycled content from PET bottles.

  • 35% pre-consumer recycled content from PET chips

  • 5% polylactic acid (PLA)

Fire Rating

ASTM-E84 – Class A classification
AS ISO 9705 – 2003 – Group 1 classification
EN-13501 – B-s2-d0 classification

Warranty

Visit FAQ for more details.

Assembly & Delivery

Connect Baffles are supplied flat pack.

Assembled your Connect Baffle then suspended from the ceiling using hanging hardware supplied.

Recommended 2 People assembly

Go to the Technical Documents and download the Installation Guide for more details.

Supplied As

Connect Prismatic

  • 18 Connect Connectors

  • 1 x each Hanger Bolt, Adjustable Fastener, Cable with swage end and barrel.

Suggested Installation

Go to Technical Documents and download the Installation Guide for more details.

Fabrication Techniques

Stanley knife and straight edge

How to Specify
  1. Select Design

  2. Select Size

  3. Select Zintra Colour

Care Instructions

Vacuum to remove dust.

Dab Zintra with a damp clean cloth and mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint free cloth.

For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water dampened cloth, then pat dry.

Always test in an inconspicuous area first and if you don't see the expected results, contact us.

Customisable

The Zintra Acoustic Solutions range is customisable to your project. Please get in touch with your local contact for details.

Additional Comments

NRC Rating

  • Without Air Gap: Up to 0.90

  • With 24" (610mm) Air Gap: Up to 0.95
